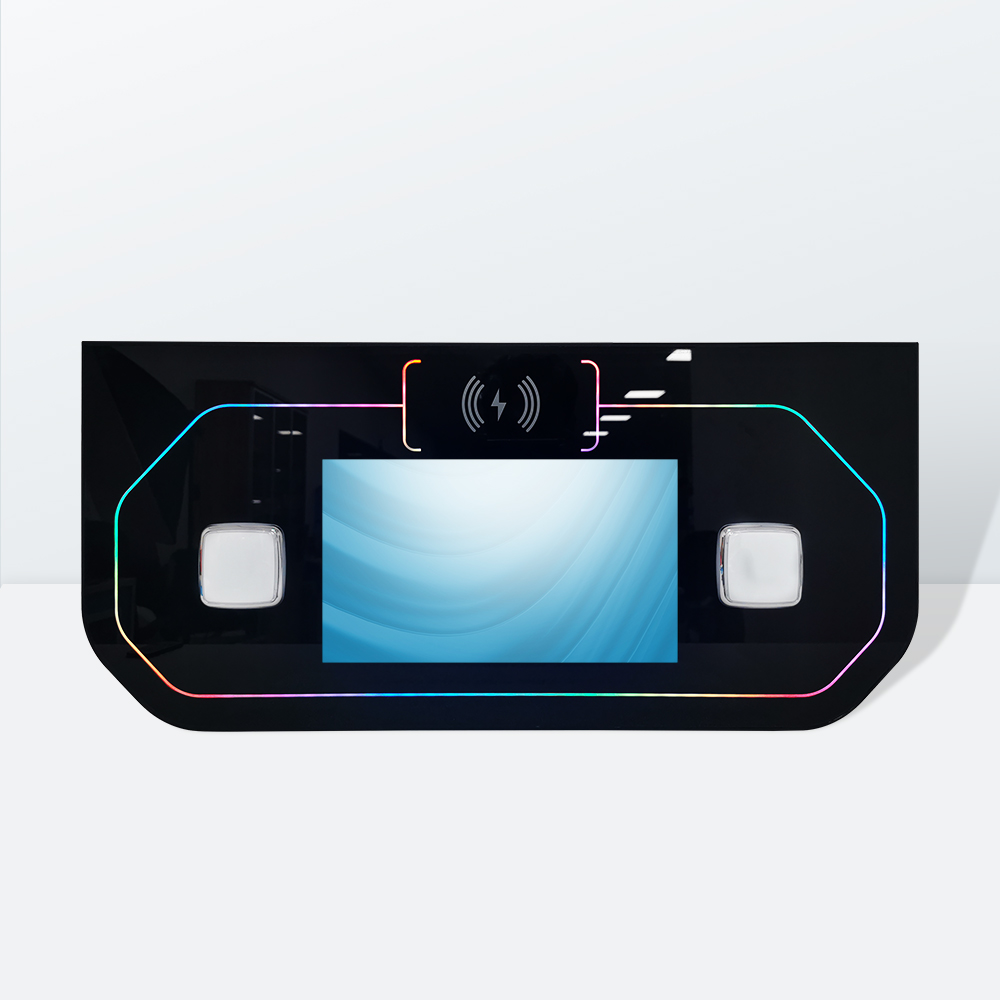

13.3″ LCD Button Panel Prototype Aruze Gaming Muso Curve-43 or Triple-27 Cabinet Touch Button Deck
Speification
LCD Button Panel
| Product | 13.3” LED Framed Stretched PCAP Touch Monitor |
| Display Resolution | 1920*1080 |
| Type | Projected Capacitive Technology (P-CAP Touchscreen) |
| Touch Operation | Finger or touch pen |
| Compatible O/S | WinXP, Win7, Win8, Windows 10, Android, Linux |
| Environment Parameter | Operation: -10°C~+60°C Storage : -20~+70°C,Operating Humidity : 20%~90% |
| Interface | VGA, DVI, HDMI, 12VDC, Molex 43020-0600 (LED Lighting Control Port) |
| Product Construction | True Flat surface, closed frame design |
| Spec Sheet | Download |
| White Luminance | Typ.300cd/m2 |
| Display Ratio | 16:9 |
| Backlight | LED |
| MTBF | 50000Hrs |
| Active Area | 165(V) x 293(H) |
| Viewing Angle | 89°/89°(Left / Right) , 89°/89°(Vertical / Horizontal) |
| Support Color | 16.7M , 72% NTSC |
| Response Time | Typ. 5ms |
| Contrast Ratio | Typ.1200:1 |
| Touch Points | 10 points |
| Outline Dimension | 9.6(V) x 184.00(W) x 309(H) |
| LED Bezel Size(U/B/L/R) | 8mm(upper)/8mm(lower)/8mm(right)/8mm(left) |
| Heat Radiation | Natural Air Cooling |
| Input Voltage | DC12V/4A |
| Warranty | 12 months |
| Certification | CE , FCC , REACH, RoHS |
